Proximity sensors and cameras address vehicle hazards through different mechanisms. A camera requires the driver or a monitoring operator to watch the image and respond. A sensor responds autonomously — alerting the driver with an audible and visual warning the moment a detection threshold is reached, without depending on whether the driver is watching the relevant monitor channel at that specific second. For waste collection vehicles, where a loader may step behind the vehicle during the two seconds the driver is watching a different camera angle, the sensor alert is the layer of protection that operates independently of driver attention. Where sensors are placed — and how they are calibrated — determines how much of that independent protection the system actually delivers.

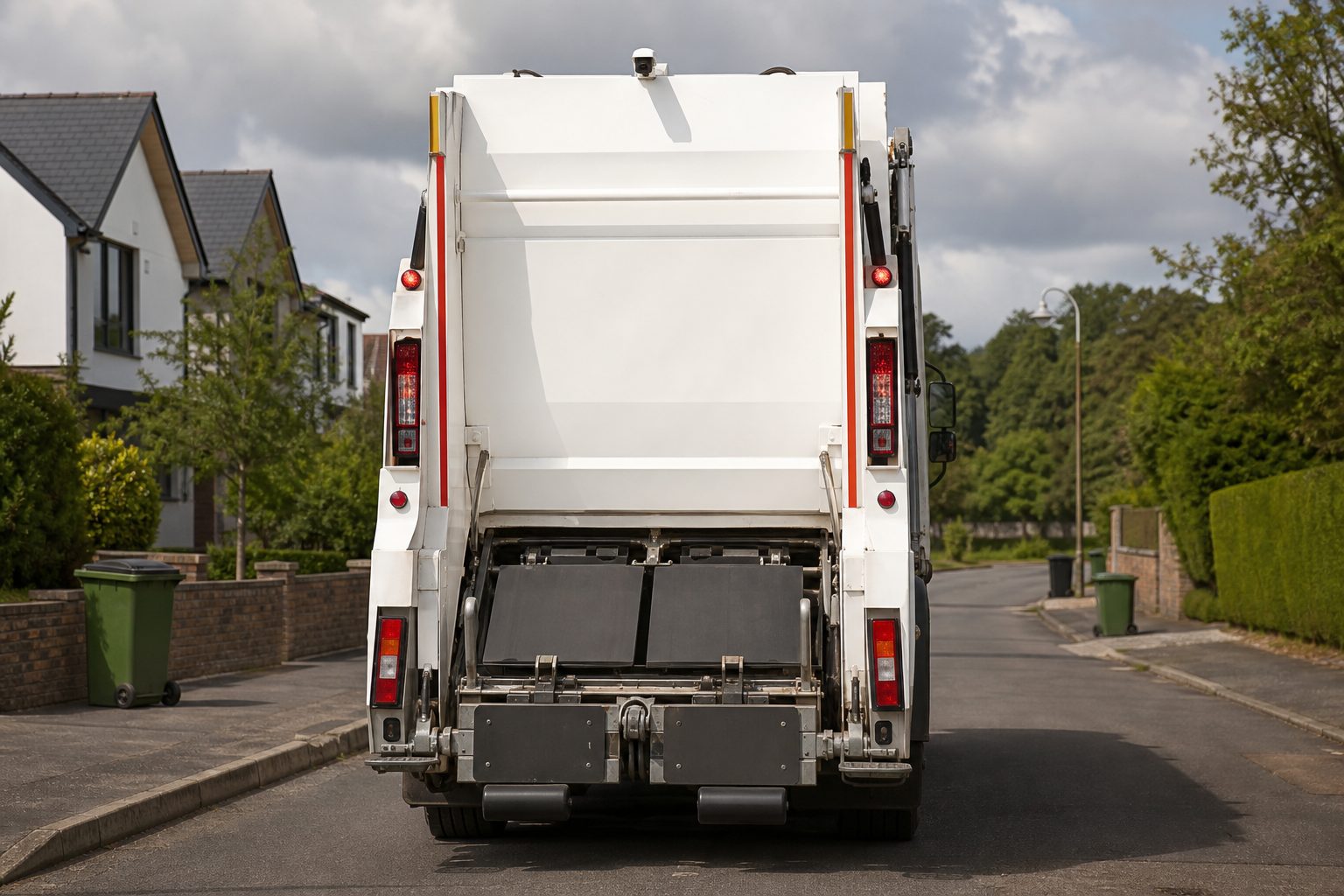

Rear proximity sensors on refuse vehicles address the primary hazard of high-frequency reversing into residential environments. Unlike logistics HGVs that reverse into defined loading bays, refuse vehicles reverse into varied residential streets, shared drives, and cul-de-sacs throughout every shift. The sensor detection zone at the rear of the vehicle should cover the width of the vehicle plus approximately 0.5 metres on each side, to account for the vehicle’s swing arc during a reversing turn.
Sensor placement at the rear of a refuse vehicle must account for the hopper body geometry. On rear-loading vehicles, the hopper protrudes rearward from the main body and the bin-lift mechanism extends further during the loading cycle. Sensors mounted on the rear face of the hopper should be set for a detection depth appropriate to the reversing speed — typically a caution zone from 1.5 to 3 metres triggering an intermittent alert, and a stop zone from 0 to 1.5 metres triggering a continuous alarm.
Integration with the rear-facing camera is standard: when the sensor detects an object in the stop zone, the camera should automatically switch to full-screen on the in-cab monitor. A sensor without camera integration gives an alert without context.
The nearside sensor arrangement addresses two distinct hazard zones on a refuse vehicle: the kerbside clearance zone alongside the body during forward movement, and the crew-on-foot zone alongside the vehicle during collection stops.
For kerbside clearance, sensors mounted along the nearside of the body — typically at chassis height — detect parked vehicles and kerb obstructions during narrow residential street navigation. These sensors are most useful at low speeds on collection roads where the driver is managing the vehicle’s lateral position relative to parked vehicles while also watching the loader’s movement. The alert gives the driver clearance feedback without requiring them to watch the nearside camera.
For the crew-on-foot zone, the sensor position that matters is at the rear nearside — the area where a loader may be standing or crossing behind the vehicle. A sensor at the rear nearside corner, positioned to detect at body height and below, provides the detection layer that underlies the nearside kerb-level camera. The camera shows the driver what is there; the sensor provides an alert whether or not the driver is watching the camera channel at that moment.
FORS Silver requires a nearside proximity sensor with audible alert for all vehicles over 3.5 tonnes. From January 2025 (FORS v7), false alert non-compliance is explicitly defined: a nearside sensor that triggers from roadside furniture, the vehicle’s own bodywork, or the kerb during normal driving is a non-compliant sensor. This makes nearside sensor calibration a compliance requirement, not just a nuisance management issue.
The Moving Off Information System (MOIS) — required in London as part of DVS PSS and recommended good practice elsewhere, though not mandatory at FORS Silver — addresses the cyclist and pedestrian zone directly in front of the vehicle at the point of pulling away from a stop. For refuse vehicles that stop repeatedly in residential streets, the MOIS sensor (or camera) detects vulnerable road users in the front nearside zone that the driver cannot see from the cab and alerts before the vehicle moves off.
MOIS sensors on refuse vehicles are typically radar or camera-based, mounted at the front of the cab or on the front bumper to cover the area from the front of the vehicle to approximately four metres ahead. The detection zone should extend to the nearside and offside of the vehicle, with particular emphasis on the nearside where cyclists filtering up the left side are most at risk. The MOIS alert should not activate during normal forward movement at speed — it should be active only during the stationary-to-moving transition and at low speeds, to avoid false alerts during route driving.
DVS Progressive Safe System compliance in Greater London requires MOIS as a component of the PSS package. Waste operators running London-area contracts who have fitted a PSS will have MOIS coverage already. Outside London, MOIS is not a FORS Silver requirement — BSIS nearside detection is the required sensor element — but fitting MOIS as a matter of course is recommended for refuse vehicles.
The bin-lift mechanism creates a crush zone that standard rear proximity sensors do not cover — they face rearward and downward, not into the lift travel path alongside the vehicle. A dedicated bin-lift zone sensor detects in the area from ground level to the top of the hopper aperture. On AI-integrated systems, the camera and sensor work together to halt the lift cycle automatically if a person is detected. On non-integrated systems, the driver must act on the alert immediately — a bin-lift alert requires stopping the cycle, not proceeding cautiously.
Detection should cover the full height range — from 0.3 metres to 1.8 metres above ground — to catch both standing and fallen personnel in the zone. Some systems use multiple units; others use a single wide-angle radar above the lift mechanism.
Proximity sensors on waste vehicles operate in conditions that create a high risk of false alerts if not calibrated for the specific environment. Three sources of false alerts are consistent across refuse fleet deployments:
The standard calibration procedure — mounting the sensor correctly, running a walk test at the required detection distances, and adjusting dip switches or software parameters to achieve the correct alert zones — must be repeated after any modification to the vehicle body that changes the geometry around the sensor mounting point. A sensor that passed calibration before a hopper body change may produce false alerts or miss detections after the bodywork configuration changes.
A rigid >7.5t requires at minimum: nearside proximity sensor (FORS Silver) and a reversing alarm; MOIS front sensing is not mandatory under FORS but is recommended (it is required in London as part of DVS PSS). Full hazard coverage adds rear proximity sensors with camera integration, a bin-lift zone sensor, and a nearside rear corner sensor for the crew-on-foot zone. The combination depends on body type and whether DVS PSS applies.
Partially. DVS PSS covers BSIS (nearside detection), MOIS (front detection), a camera monitoring system, and left-turn warning. FORS Silver for rigid vehicles over 7.5 tonnes also requires a rear camera — which DVS PSS does not include. A PSS-equipped vehicle is close to FORS Silver compliance but will typically require an additional rear camera to meet the full Silver equipment standard for rigid HGVs.
External proximity sensors on refuse vehicles should be rated to IP67 minimum — the same standard as external cameras. The wash-down environment on a refuse vehicle is the primary risk: sensors with unsealed housings or inadequate IP ratings will develop moisture ingress during pressure washing, leading to erratic detection or sensor failure. IP69K is appropriate for sensors mounted at low positions on vehicles washed with industrial high-pressure equipment.
Yes. Bin-lift zone sensors are available as retrofit kits for most common rear-loader body configurations. The sensor brackets are typically mounted on the body frame alongside the lift mechanism travel path, with cabling routed to the MDVR or a dedicated sensor ECU. Retrofit requires a body inspection to confirm bracket mounting points and sufficient clearance for the sensor housing during the full lift cycle range. Where the hopper body geometry is complex, a site survey by the sensor supplier before retrofit is recommended.
Stop the lift cycle immediately — not proceed with caution. On AI-integrated systems, the cycle halts automatically. On non-integrated systems, the driver must act on the alert at once. Post-alert, the driver should visually confirm the zone is clear before resuming. The alert and driver response should be logged if the MDVR records sensor event data.
Covers rear proximity sensors, nearside crew-on-foot sensors, front MOIS configuration, bin-lift zone sensors, and calibration verification for refuse fleet environments.
