Proximity Sensors

A basic safety requirement for many modern fleets. Proximity sensors can be provided to cover any area of your vehicle. Our combined camera and sensor system displays both camera images and sensor display on one 9″ monitor for reduced driver distraction.

Address

Backwatch Safety Productions Ltd.

Units 27-28,

Enterprise Centre,

Bryn Road,

Aberkenfig,

Bridgend,

Mid Glamorgan,

CF32 9BS

Opening Times:

Monday to Friday:

8.30am-5.30pm

Designed by ITCS

BWB03 sensors
BWB03 sensors
BWB03 Ultra Sonic Sensor

4 ultra sonic blind spot sensor system, for use in low speed situations to assist identifying VRU in nearside blind spot area. System operates on indicator signal with an adjustable speed cut out module. System includes an A pillar mounted traffic light visual warning with additional progressive audible warning system.


Specification:

- Sensor Number:
- Zones:
- Speed:
- Detection Distance:
- Audible Warning:
- Display:
- Operating Temperature:
- IP Rating:
4
Single
Adjustable via supplied Speed module to Tachograh
1.5m - 0.6m
progressive 3 stage, volume adjustable
A pillar mounted, traffic light
-30°C~80°C
IP69K

Certification:

EMARK, CE, FCC

BWB07 sensors
BWB07 sensors

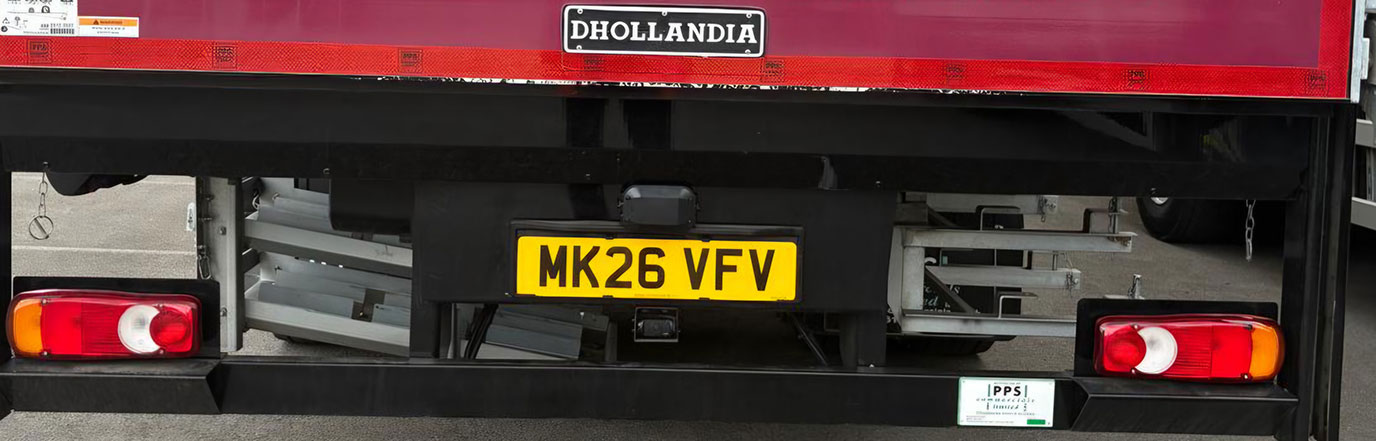

BWB07 Ultra Sonic Sensor

4 ultra sonic blind spot sensor system, for use in low speed situations to assist identifying VRU in nearside blind spot area. System operates on indicator signal with an adjustable speed cut out module. System includes an A pillar mounted traffic light visual warning with additional progressive audible warning system.


Specification:

- Operating Voltage:
- Detection Zones:
-
-
- Min Sensor Height:
- Audible Warning:
- Visual Warning:
- Detection Shift:
- Adjustable Detection Distance:
- Operating Temperature:
- IP Rating:
10-32v
Zone 1 = 0-0.6m
Zone 2 = 0.6-1m
Zone 3 = 1.00-2.5m
400mm
Progressive
Traffic Light (green, amber, red)
0.5m
Outer sensors 2.5m 0.6m
-30°C~80°C
IP69K

Certification:

EMARK, CE, FCC

OLYMPUS DIGITAL CAMERA
OLYMPUS DIGITAL CAMERA

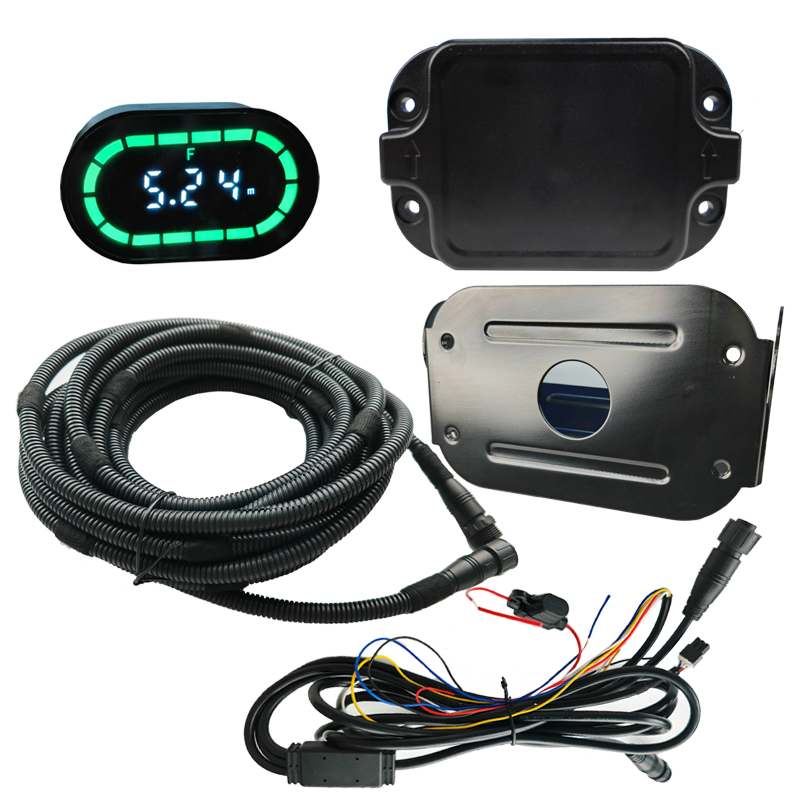

BWradar2/4

2 or 4 sensor, microwave radar blind spot detection system, offering significant advantages over traditional ultrasonic sensors. Designed to identify movement so warning only of approaching road users and pedestrians, thus greatly eliminating false alarms from “road furniture”. Wide angle of detection providing full coverage within the detection zone. Systems operates independently of indicators but offering additional warning alerts when indicating. Fitted to both near and offside.


Specification:

- Sensor Number:
- Speed Operation:
- Detection Distance -
2 sensor:
4 sensor:
- Warning System -
 No indicator:
 Indicator Operated:
- Frequency:
- Detection Ability:
- Operating Voltage:
- Sensor IP rating:
- Operating Temperature:
2 or 4 sensors
0 mph to 100 mph
-
Human L 5-6m, w 3m, Vehicle 10m L, w 3m
Human L 10-12m, w 3m, Vehicle 20m l, w 3m
-
Illuminating LED fitted to A pillar when in detection zone
Flashing LED with additional Bleeping warning
24 – 24.25ghz
5 targets at any one time
9-32v
IP67
-20°C - +85°C



Certification:

EMARK (E9*10R06100*22004*00), CE

BVR 4
BVR 4
BWBVR4/8/16

Ultra sonic blind spot detection system, comprising of 4 to 16 sensors with up to 4 selectable zones of protection (nearside, offside, rear, front). Video overlay function to give pictorial visual warning for each individual senso, combined with images from either single or multi camera system. Audible warning buzzer with GPS controlled speed cut out @ 12.5 MPH.


Specification:

- Sensor Number:
- Zones:
- Speed:
- Detection Distance:
- Audible Warning:
- Camera Integration:
- Video Out:
- Display:
- Operating Temperature:
- IP Rating:
4 to 16 sensors
4 zones of 4 sensors (left, right, up, down)
Cut out 12.5 mph via supplied GPS
1.5m - 0.3m
progressive 0.8m - 0.3m, switchable via supplied buzzer
x1 PAL standard definition 4 pin aviation
x1 4pin aviation
through monitor, sensor warning and camera
-30°C~80°C
IP69K



Certification:

EMARK, CE, FCC

BWRadar77G (4)
BWRadar77G (2)
BWRadar77G (3)
BWRadar77G (1)
BWRadar77G (4) BWRadar77G (2) BWRadar77G (3) BWRadar77G (1)

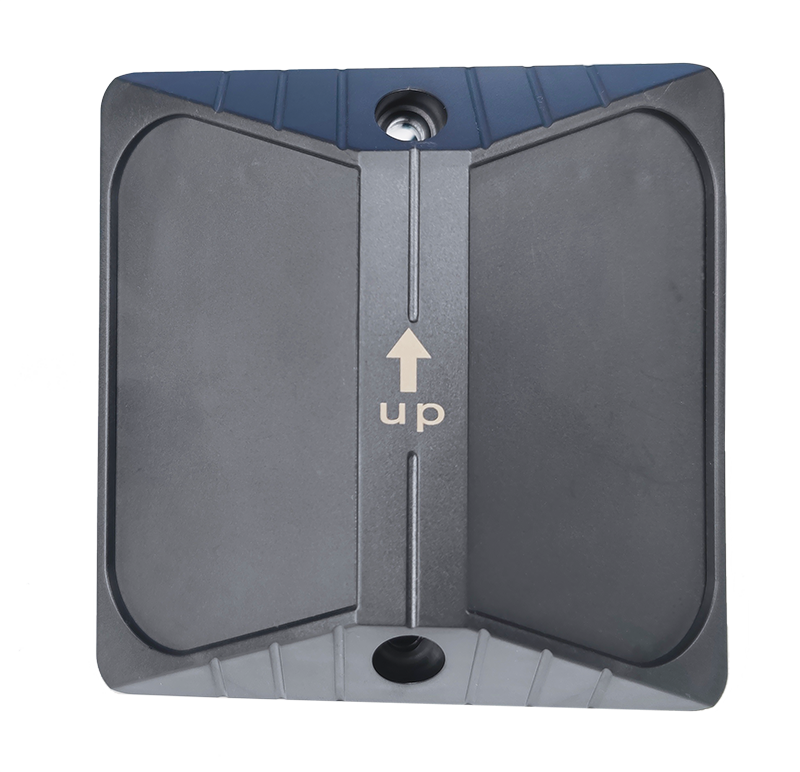

BWradar77G

Latest 77Ghz Microwave radar blind spot detection system, offering a longer range and more detailed detection system over our standard BWradar2. This system is fitted on the front near and offside of a vehicle with a detection distance of up to 30m. Offered with 2 options.
Option 1
For use as a blind spot warning system from stationary, monitoring the whole side of the vehicle and warning of any VRU moving towards the fitted vehicle.
Option 2
Operates above 30mph for use as vehicle blind spot system, only giving warning of vehicles in adjacent lanes.as vehicle blind spot system, only giving warning of vehicles in adjacent lanes. Whilst our original BWradar will only warn of vehicles traveling faster than the fitted vehicle, BWradar77G will warning of all vehicles (faster/slower/same speed) in blind spot. It will detect vehicles in 3rd lane, but will not warn., providing full. Systems operates independently of indicators but offering additional warning alerts when indicating. Fitted to both near and offside.


Specification:

- Sensor Number:
- Speed Operation:
Option 1 Stationary
Option 2 Above 30mph
- Detection Distance:
- Warning System -
 No indicator:
 Indicator Operated:
- Frequency:
- Detection Ability:
- Receiving Signal:
- Operating Voltage:
- Sensor IP rating:
- Operating Temperature:
2
-
-
-
Up to 30m from sensor
-
Illuminating LED fitted to A pillar when in detection zone
Flashing LED with additional Bleeping warning
77Ghz
Multiple targets
4 axis
9-32v
IP67
-20°C - +85°C



Certification:

EMARK (E9*10R06100*22004*00), CE
