A comprehensive range of monitors are available to accompany the backwatch high specification cameras and sensor technology. We would be delighted to help you select the most suitable monitor for you and recommend its location to ensure VOSA regulations are met.
Monday to Friday:
8.30am-5.30pm
5” TFT LCD colour monitor, compact size and more suitable for a van or where location space is limited, 2 camera inputs, reverse grid and mirror function.
Specification:
| - Aspect Ratio: - Screen size: - Resolution: - Video Input: - Voltage: - System: - Bracket: - Triggers: - Size: - Image Device: |
16:9/4:3 5" 800/480 RGB 2x 4 pin Aviation, CVBS standard definition 12/24v PAL/NTSC auto recognition fan/ U shape 1 w 138mm, d 25mm, h 101mm 720AHD or 1080 full HD |
Certification:
UKCA, EMARK, CE, FCC
9” LCD colour monitor, either in AHD high definition or Standard definition resolution. 9” monitors give a much larger camera image, especially useful if using with video overlay sensors (e.g. BWBVR) or where MDVR recorder is used giving multiple camera images. Optional quad version available.
Specification:
| - Aspect Ratio: - Screen size: - Resolution: - Video Input: - System: - Voltage: - OSD: - Bracket: - Sunshade: - Triggers: - Image Flip: - Reverse Grid: - Backlight: - Size: |
16:9/4:3 9" 800 x 480 2x 4 pin Aviation, single image at a time display PAL/NTSC auto recognition 12/24v menu, brightness, colour fan fixed 1 Yes Yes Blue w 138mm, d 25mm, h 101mm |
Certification:
UKCA, EMARK, CE, FCC
7” LCD colour monitor able to display images in stunning 1080AHD, with ability to also display 720AHD cameras, standard definition CVBS cameras or combination of the two, making this a very versatile monitor.
Specification:
| - Aspect Ratio: - Screen size: - Resolution: - Video Input: - Voltage: - System: - Bracket: - Triggers: - Mirror Flip: - Reverse Grid: - Backlight: - Size: |
16:9 7" 1024/600 RGB 2 4 pin aviation, 1080AHD/720AHD/CVBS Single image at a time 12/24v PAL/NTSC auto recognition Fan / Fixed 1 Yes Yes Blue w 179mm d 28mm, h 122mm |
Certification:
UKCA, EMARK, CE, FCC
7” TFT LCD colour monitor for standard definition cameras or for display of images from MDVR. 3 AV inputs enabling unit to take up to 3 cameras, e.g. left, right, rear with triggers for each input. Camera images are displayed one at a time. Also available as a quad version with 4 camera inputs and multi-display options.
Specification:
| - Aspect Ratio: - Screen size: - Resolution: - Video Input: - Video Input Q: - Voltage: - System: - OSD: - Speaker: - Bracket: - Sunshade: - Triggers: - Backlight: - Size: |
16:9/4:3 7" 800/480 RGB 3x 4 pin Aviation single image at a time display 4x 4 pin aviation, quad, single, double, PIP 12/24v PAL/NTSC auto recognition menu, brightness, color Built In Fan Fixed 3 (4 on quad) Blue w 138mm, d 25mm, h 101mm |
Certification:
UKCA, EMARK, CE, FCC

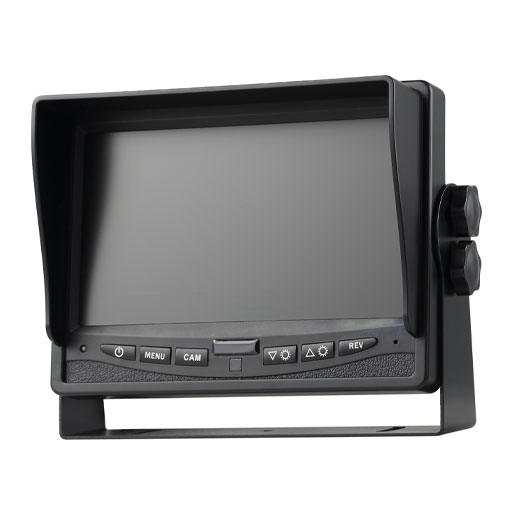

7” TFT, LCD, AHD colour monitor with fan bracket, blue backlit tough sensitive buttons, reverse trigger, also available with quad function for 4 camera inputs.
Specification:
| - Aspect Ratio: - Screen size: - Resolution: - Video Input: - Voltage: - Bracket: - Sunshade: - Mirror Flip: - Reverse Grid: - Brightness: - Size: |
16:9 7" 1024/600 RGB 2x 4 pin aviation / 4x 4pin aviation 12/24 Fan Built In Yes Yes 450cd/m2 w 80mm, d 70mm, h 120mm |
Certification:
UKCA, EMARK, CE, FCC
7” TFT windscreen mount colour monitor, available in standard or high definition compatibility. 2 video input or quad option. Unit is either bonded to the windscreen or clips onto existing rear view mirror. Suitable for van derived vehicles.
Specification:
| - Screen size: - Resolution: - Video Input: - Voltage: - Buttons: - Triggers: - Bracket: - Size: |
7" 800/480 RGB, 1024/600 RGB (AHD) 2AV / 4AV 12/24v touch sensitive 2AV (1), 4AV (4) windscreen bond mirror arm / Mirror clip on w 248mm, d 24mm, h 117mm |
Certification:
UKCA, EMARK, CE, FCC
7” TFT LCD colour monitor, in built digital wires receiver which can take up to 4 individual wireless cameras. System supplied with 1 x 1080 full HD digital wireless camera. System particularly useful where not practical to install hard wired camera system. e.g. Note boom trailers. Monitor has aux power socket plug for ease of installation. No voltage droppers are required as both camera and monitor are 9-36v.
Specification:
| - Monitor - - Aspect Ratio: - Receiver: - Screen size: - Resolution: - Brightness: - Bracket: - Size: - Camera - - Image Device: - Voltage: - Scan Frequency: - Minimum Illumination: - View Angle: - Sender: - Water/Dustproof: - Size: |
- 16:9/4:3 Digital wireless coded AHD 7” 1024/600 RGB 600cd/m2 U shape w 208mm, d 58mm, h 136mm (inc bracket) - 1080 Full HD 9-36v 50/60Hz 0.1 lux 140° Digital wireless coded AHD IP69 w 81mm, d 57mm, h 68mm |
Certification:
UKCA, EMARK, CE, FCC
