BWBSISMOISCOM


Blind Spot Information System (BSIS) and Moving Off Information System (MOIS), 77Ghz microwave radar system combined into one display for easy single point of reference for driver, providing directional visual alerts, audible warning and enhanced  alerts. Assessed and designed to meet the R159 & R151, PSS requirements for Transport for London. Compliant with the latest Direct Vision Standards (DVS).

The system comprised of two dual 77Ghz radar units for front & side (system can be set for both right & left hand drive vehicles). Detecting Vulnerable Road Users when vehicle moving off or in close proximity to the side. A unique feature of our system is that it can be programmed onsite for specific location of the sensors.

Specification:

SPECIFICATION

Voltage: 9/32v

Frequency: 77Ghz

Number of targets: 31

Speed accuracy: 0.15m/s

Max detection distance: 65m

Distance Accuracy: 0.13m

Radar water proof rating: IP67

Speed operation: programmable onsite

Speed detection: via built in GPS in Display unit

Radar size: 102 x104 x 34mm

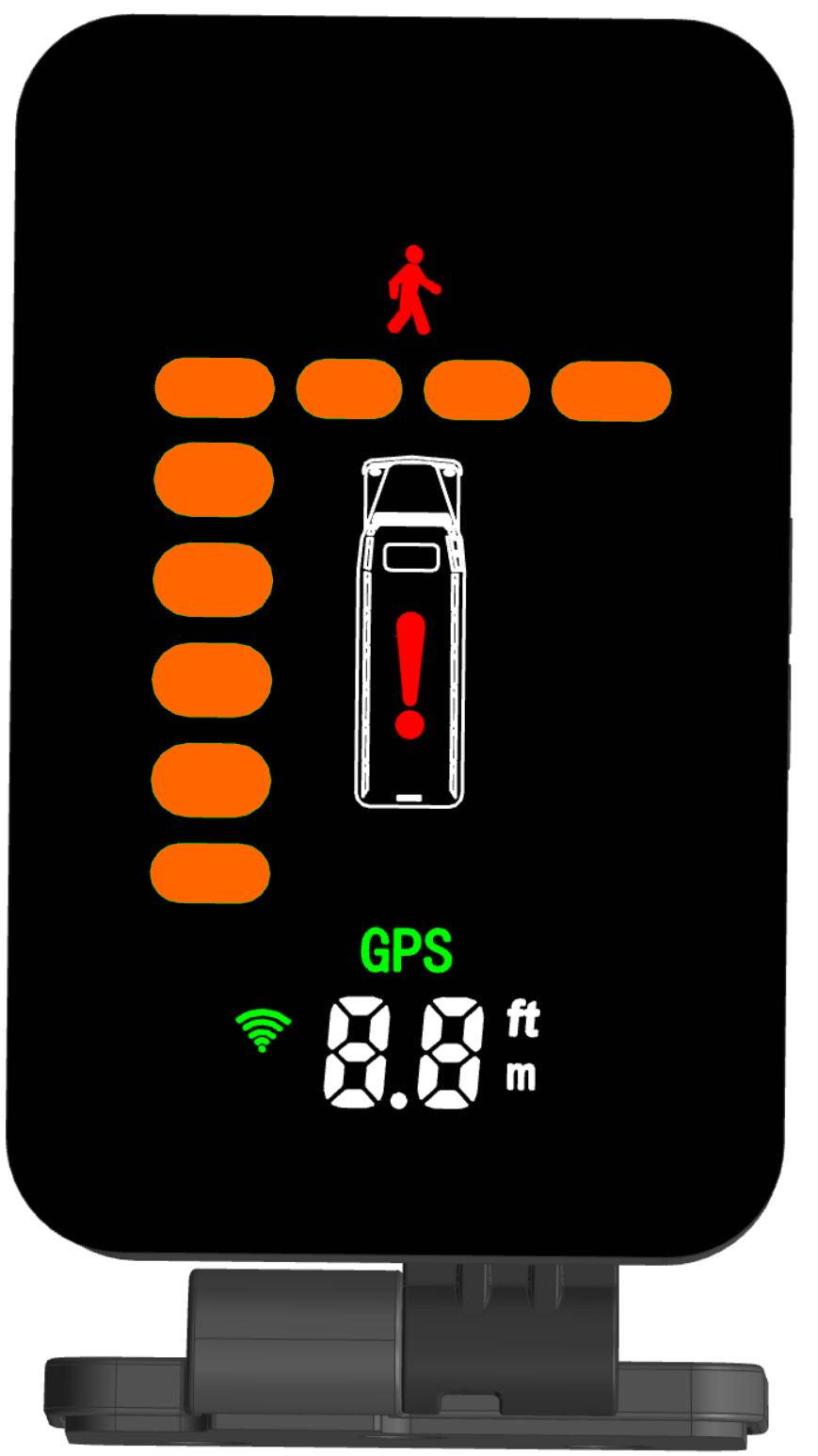

Display:

LED green, amber, red

Side and front directional alert

Enhanced alert warning

Audible warning

54 x 86 x 38mm

Certifications:
CE/UKCA, E57*10R06/020593
